Galvanized wire can be divided into two types according to surface treatment and processing: hot-dipped galvanized wire / electro galvanized iron Wire

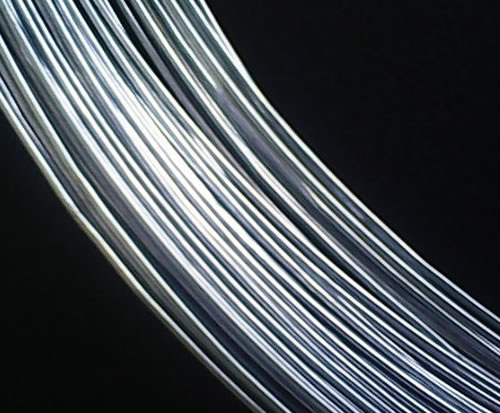

Galvanized Wire

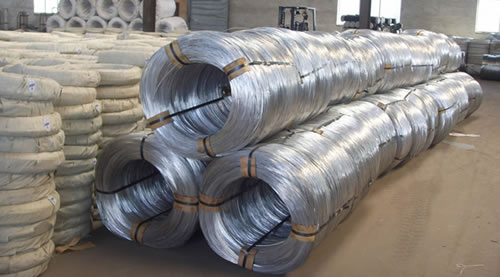

Galvanized Wire Workshop
Type One: Electro Galvanized iron Wire
Electro galvanized wire is made of mild steel or carbon steel wire rod through wire drawing, heating and galvanizing process.
Technical Information of Electro Galvanized Iron Wire:
Specification: Wire diameter: 5.5mm-0.2mm
Zinc Rate: 7g-18g/m2
Tensile strength: 30kg-70kg/mm2
Elongation rate: 10%-25%
Type Two: Hot-dipped Galvanized wire
Zinc coated: 45g/m2.min.
Tensile strength:35-70kg/mm2
Weight/coil: 0.1kg-800kg/coil
Features: Soft wire, strong, rust-resisting, good tenacity.
Packing: Plastic inside and woven bag outside or hessian cloth outside.
Common Sizes for Galvanized Wire: Applied to Both Electro Galvanized and Hot Dipped Wire
| wire gauge size | SWG(mm) | BWG(mm) |
| 8# | 4.06 | 4.19 |
| 9# | 3.66 | 3.76 |
| 10# | 3.25 | 3.40 |
| 11# | 2.95 | 3.05 |
| 12# | 2.64 | 2.77 |
| 13# | 2.34 | 2.41 |
| 14# | 2.03 | 2.11 |
| 15# | 1.83 | 1.83 |
| 16# | 1.63 | 1.65 |
| 17# | 1.42 | 1.47 |
| 18# | 1.22 | 1.25 |
| 19# | 1.02 | 1.07 |
| 20# | 0.91 | 0.89 |
| 21# | 0.81 | 0.813 |
| 22# | 0.71 | 0.711 |
| 23#-37# also available | ||
